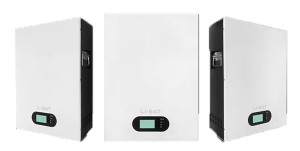

10KWH 48V LiFepo4 lithium ion battery for solar power system
|
Type
|
GBP48V-100AH-W
(Voltage Optional 51.2V)
|
GBP48V-200AH-W
(Voltage Optional 51.2V) |
|
Nominal voltage(V)
|
48
|
|
|
Nominal capacity(AH)
|
105
|
210
|
|
Nominal energy capacity(kWh)
|
5
|
10
|
|
Operating voltage range
|
42-54.75
|
|
|
Recommended charging voltage(V)
|
52.5
|
|
|
Recommended discharge cut-off voltage(V)
|
45
|
|
|
Standard charging current(A)
|
50
|
100
|
|
Maximum continuous charging current(A)
|
100
|
200
|
|
Standard discharging current(A)
|
50
|
100
|
|
Maximun discharge current(A)
|
100
|
200
|
|
Applicable temperature(°C)
|
-30~60(Recommended 10~35)
|
|
|
Allowable humidity range
|
0~95% No condensation
|
|
|
Storage temperature(°C)
|
-20~65(Recommended 10~35)
|
|
|
Protection level
|
IP20
|
|
|
Cooling methord
|
Natural air cooling
|
|
|
Life cycles
|
5000+times at 80% DOD
|
|
|
Maximum size(DxWxH)mm
|
628*410*186
|
682*465*276
|
|
Weight(kg)
|
45.7
|
89.6
|
Structure
Standard design, adapt to various systems
5/10KWH standard capacity is available, and can be adapted to
a variety of systems through battery parallel connection
Details
BMS intelligent protection, safe and reliable
1 Multi-Level Protections from Inverter &BMS
2 Charging temperature 0~60℃，
dischargingtemperature-10~60℃
3 Brand new A-grade lithium iron phosphate battery
Whole system service, multifunctional design
1 Multifunctional design,with LED display, directional universal wheel
2 Compatible with various energy storage inverters
3 Remote firmware upgrade
Energy storage batteries can be used with solar panels and inverters to form on-grid and off-grid systems together
